Redgum Folding Van Ramp's - available in x3 lengths ( from $2100 + installation if required )
FEATURES
– Removable heavy duty fold down ramp
– Low profile mount plate

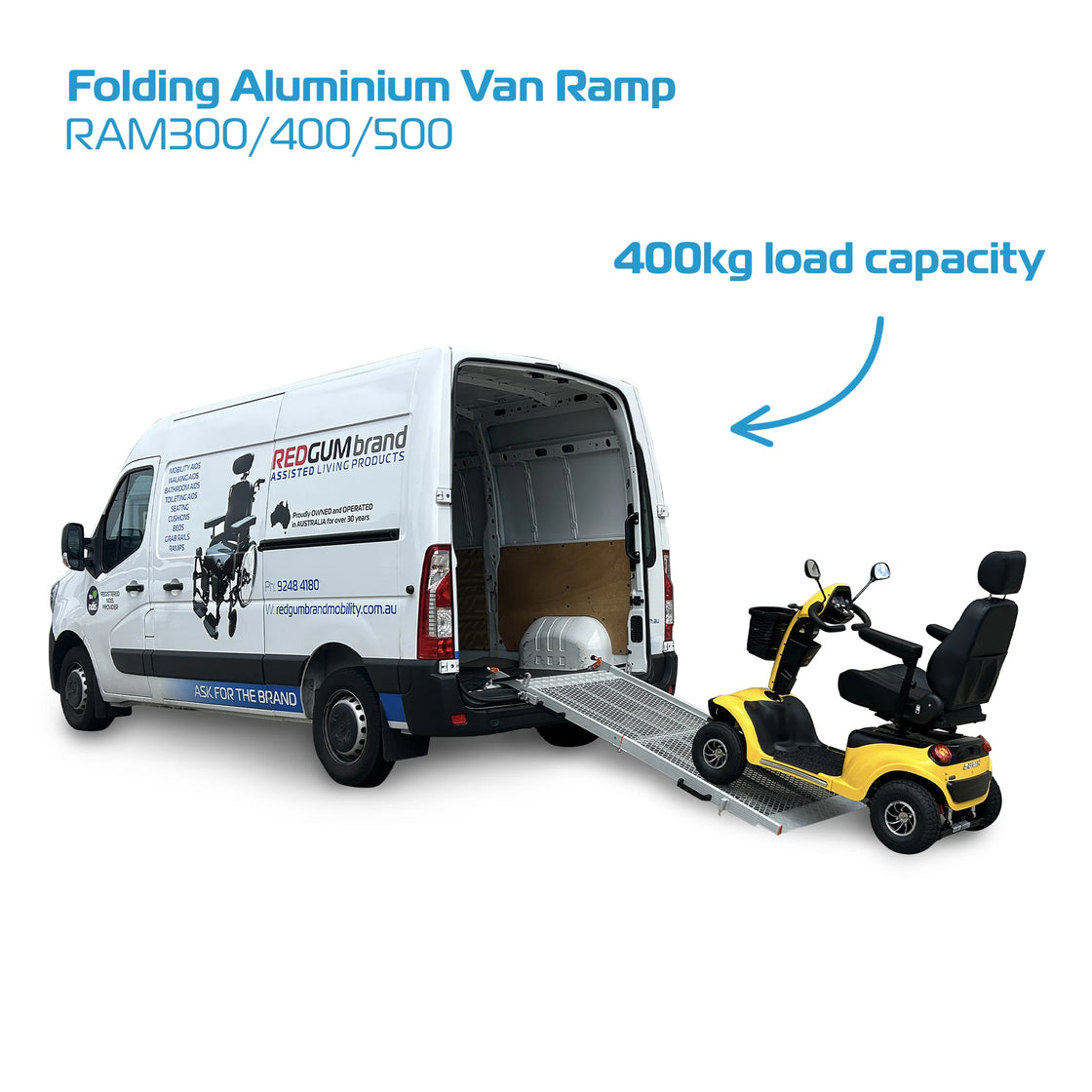

– Perfect for loading / unloading mobility scooters, powerchairs, carpet cleaners, furniture

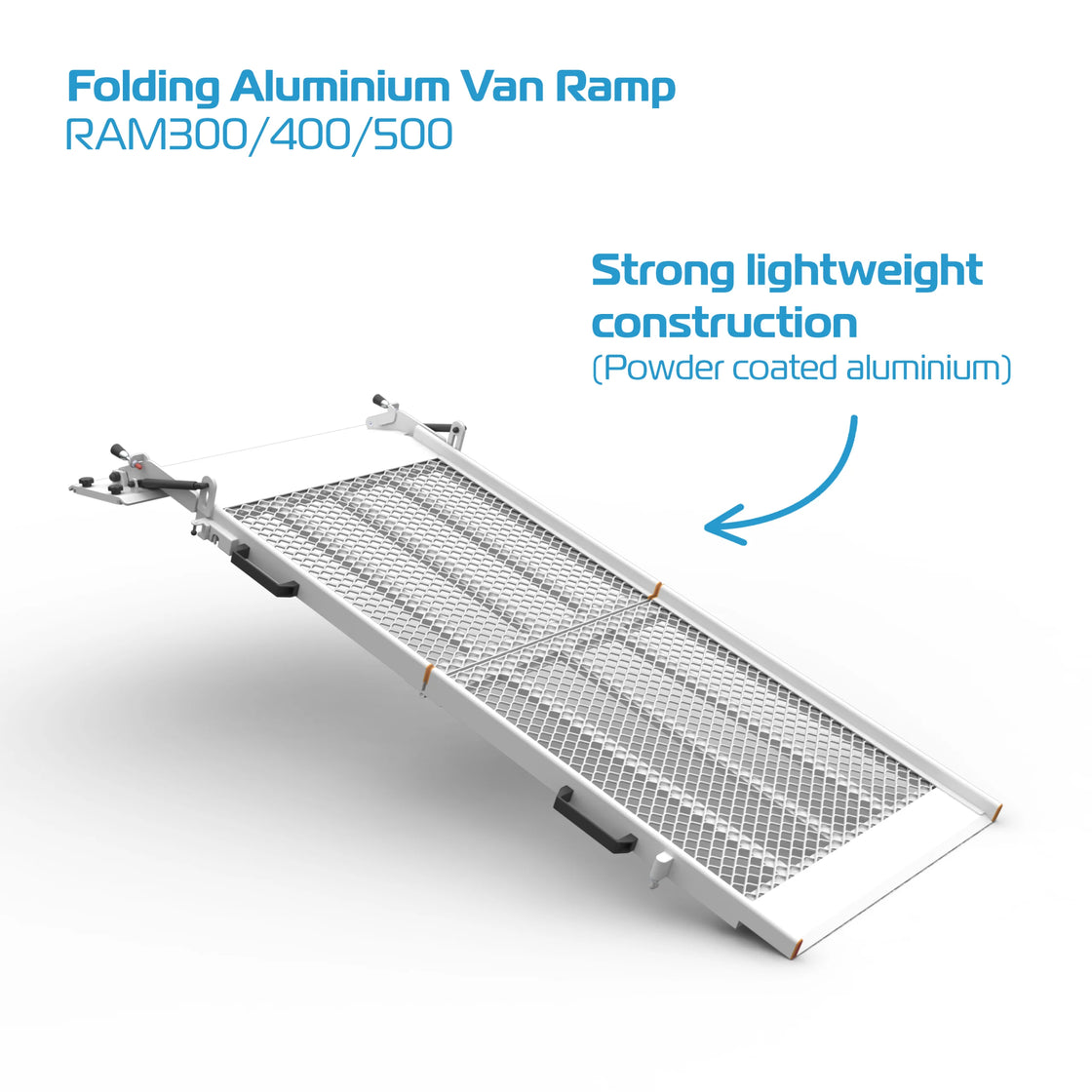

– Strong lightweight construction (powder coated aluminium)
– Expanded mesh designed for strength and slip resistance
– Checker plate lead in on ramp provides a smooth transition from ground to ramp
– 400kg load capacity
– 820mm (internal) wide ramp with side guard rails
– Plastic grab handles on both sides to assist with ramp set up
– Dual gas strut to assist with ramp drop down and pick up

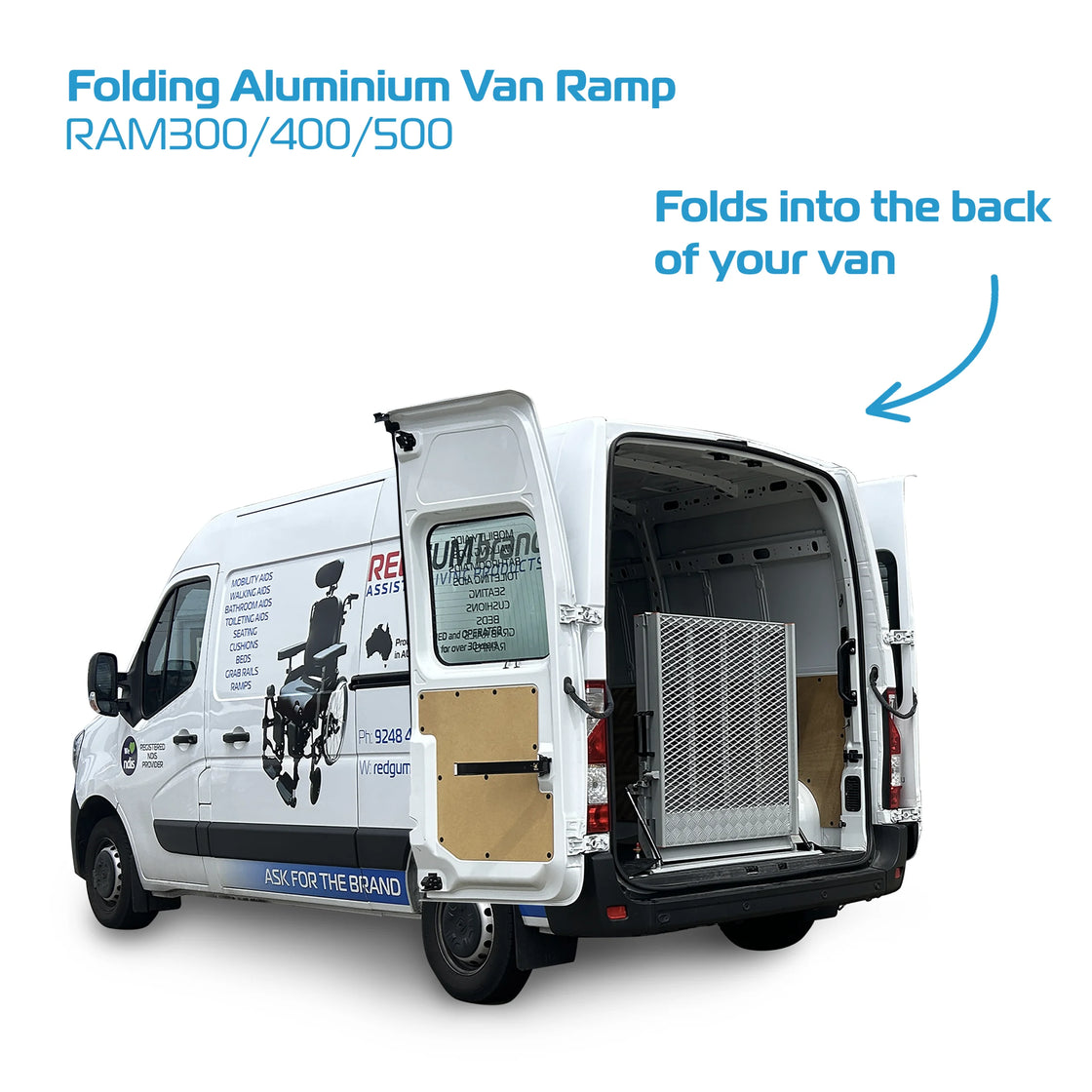

– Self engaging latch holds ramp together when folded up
– Full length hinge for strength
– Adjustable rubber stoppers firmly hold ramp in place when folded up
SPECIFICATIONS
– Length (unfolded):
RAM300: 2000mm
RAM400: 2400mm
RAM500: 2800mm
– Overall height (folded):
RAM300: 1125mm
RAM400: 1325mm
RAM500: 1525mm
– Overall width:
External: 1060mm
Internal: 820mm
– Overall Depth (folded):
300mm
– Maximum Weight Capacity: 400kg
