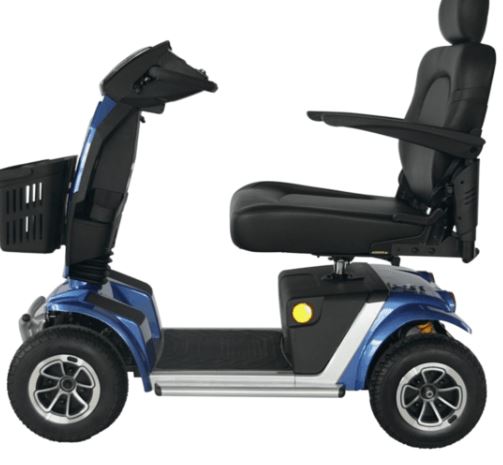

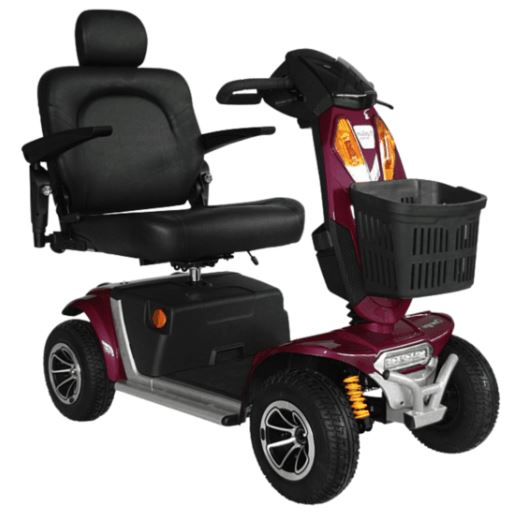

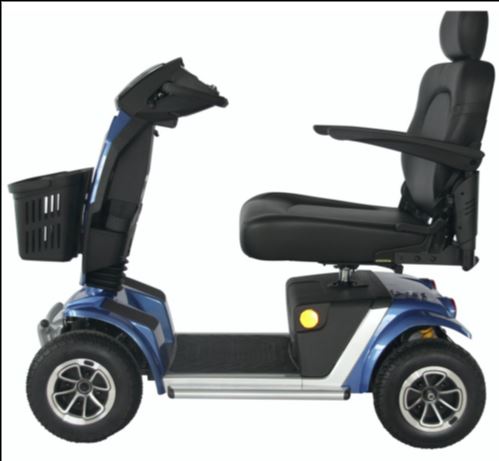

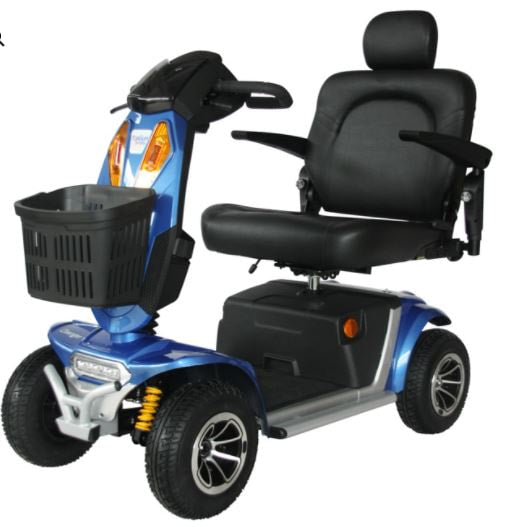

TopGun CHARGER
Charger
A sensational, bariatric scooter, sporting a compact footprint. Complete with double sprung suspension, ensuring the smoothest ride, the Charger has class leading load capacity with a high torque motor augmented by surprising agility. The extra-large, plush seat includes adjustable leg length to aid in finding the best seating position for every driver.
- Industry leading High Torque Motor and Gearbox
- Safety Turning Sensor
- Shock Absorbing Flexi Tiller
- Adjustable Tiller Angle
- USB Charging Port
- Up To 203kg Safe Working Load (SWL)
- Extra Wide Super Comfort Captain Seat
- Front and Rear Suspension, Double Sprung Suspension
- Low Ground Clearance for Easy Mount and Dismount
- Safety Park Brake
- Digital Dash Display
- Industry Leading Turning Circle
| Weight |
142kg |
|---|---|
| Safe Working Load (SWL) |
203kg |
| Colour Options |
Cobalt Blue, Sangria Red |
| Operational Range |
Up to 49km |
| Motor Power |
1000W Special HTP (High Torque Performance) |
| Battery |
12V 75Ah x 2 (lead-acid) |
| Charger Size |
24V 8A |
| Controller |
PG S-140A |
| Turning Radius |
190cm |
| Max. Speed |
10km/h |
| Tyre Size (Front) |
13'' pneumatic |
| Tyre Size (Rear) |
13'' pneumatic |
| Suspension |
Front & Rear |
| Seat |
22" Captain, Low Back |
| Seat Size (W x D x H) |
55.9 x 45.7-50.8 (adjustable) x 48.3cm |
| Seat Slide |
Yes |
| Seat Post Suspension |
No |
| Seat Swivel |
Yes |
| Ground Clearance |
16.5cm (+/- 2.5cm) |
| Max. Climbing Grade |
12° (subject to user weight & surrounding conditions) |
| Adjustable Tiller Angle |
Yes |
| Shock Absorbing Flexi Tiller |
Yes |
| Lights |
Head, Tail, Turning & Emergency |
| LCD |
Yes |
| Safety Turning Sensor |
Yes |
| Rear Mirror |
Left & Right |
| USB Charger Port |
Yes |
| Front Basket |
Big Non Folding |
| High-Low Switch |
Yes |
| Electromagnetic Brake |
8Nm |
| Parking Brake |
Yes |
| Gear Ratio |
21.06:1 |
| Free Wheel Mode |
Yes |
| Dimensions (L x W x H) |
132.7 x 69.8 x 127.6cm |
| Warranty |
5 Year Limited Warranty |
